Part Number : STRW6053S

Function : Current Mode Control PWM Regulator IC

Package : TO220F-6L type

Maker : Sanken Electric co.,ltd.

Image :
STRW6053S datasheet

Description :

The STR-W6000S  series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

Pinouts :





The low standby power is accomplished by the automatic switching between the PWM operation in normal operation and the burst-oscillation under light load conditions. The product achieves high cost-performance power supply systems with few external components.

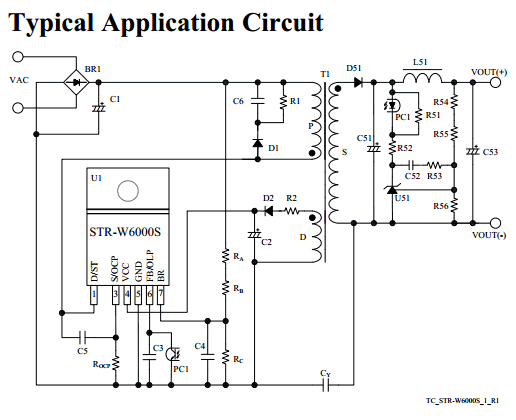

Application Circuits :

1. White goods

2. Consumer electronics

3. Office automation

4. Industrial equipment

5. Communication equipment

Datasheet PDF Download :
STRW6053S pdf

Others datasheet of same file :

STR-W6072S, STRW6051S, STRW6052S, STRW6053, STRW6072S
