Part Number : STK412-150

Function : Thick-Film Hybrid IC / Two-Channel Shift Power Supply Audio Power Amplifier IC

Package : SIP 22 Pin type

Maker : SANYO , Panasonic

Pinouts :
STK412-150 datasheet

Description :

The STK412-000, STK412-150 series are class H audio power amplifier hybrid ICs that feature a built-in shift power supply circuit. These ICs provide high efficiency audio power amplification by controlling (switching) the supply voltage supplied to the power transistors according to the detected level of the input audio signal.

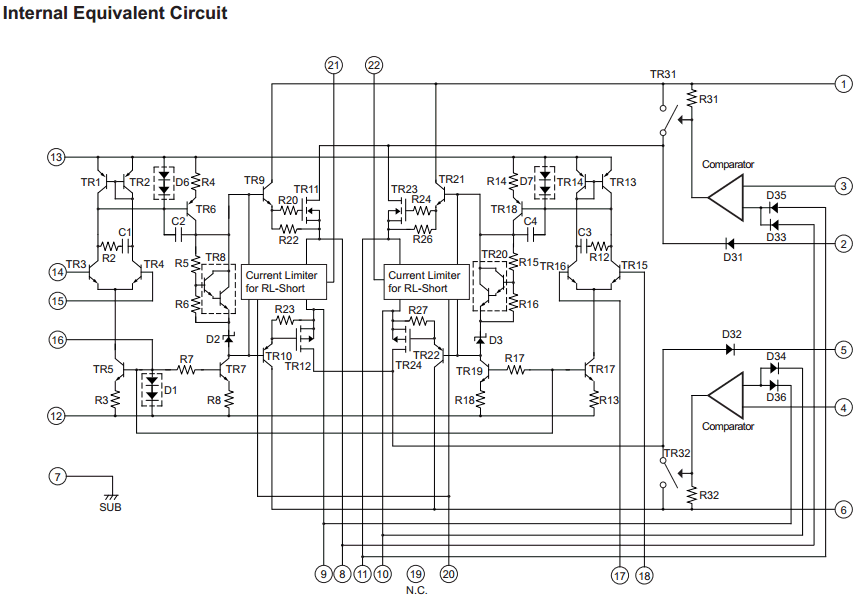

STK412-150 pinout

Features

1. Pin compatible IC series that covers power ratings from 50 W ´ 2 channels to 180 W ´ 2 channels at 0.7 or 0.8% THD, 20 Hz to 20 kHz. This allows the use of a common PCB for all output classes.


Pinouts


Datasheet PDF Download :
STK412-150 pdf

Others datasheet of same file :

STK412-000, STK412-010, STK412-020, STK412-030, STK412-040
