Part Number : PZT2907A
Function : - 60V, - 600mA, PNP Silicon Planar Epitaxial Transistor
Package : SOT-223 Type
Maker : ON Semiconductor

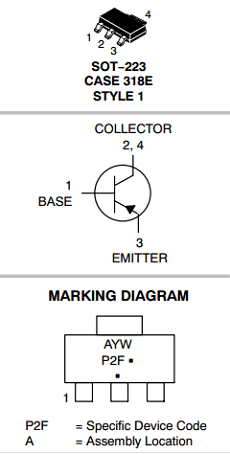

Pinouts :
Description :
This PNP Silicon Epitaxial transistor is designed for use in linear and switching applications. The device is housed in the SOT-223 package which is designed for medium power surface mount
applications.
Features
• NPN Complement is PZT2222AT1
• The SOT-223 Package can be Soldered Using Wave or Reflow
• SOT-223 Package Ensures Level Mounting, Resulting in Improved Thermal Conduction, and Allows Visual Inspection of Soldered Joints. The Formed Leads Absorb Thermal Stress during Soldering Eliminating the Possibility of Damage to the Die
Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = - 60 V
2. Collector to Emitter Voltage : Vceo = - 60 V
3. Emitter to Base Voltage : Vebo = - 5 V
4. Collector Current : Ic = - 600 mA
5. Total Dissipation : Pc = 1.5 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = - 65 ~ +150°C
Datasheet PDF Download :
Others datasheet of same file :
PZT2907, PZT2907AT1, PZT2907AT1G, PZT2907AT3G, SPZT2907AT1G
