Part Number : NE5534N

Function : Dual and single low noise OP amplifier

Package : DIP 8 Pin Type

Maker : Philips Electronics

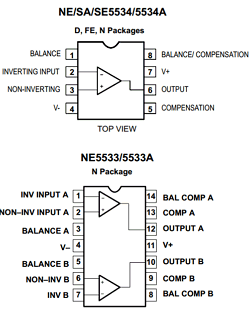

Pinouts :
NE5534N datasheet

Description :


The 5533 / 5534 / NE5534N are dual and single high-performance low noise operational amplifiers. Compared to other operational amplifiers, such as TL083, they show better noise performance, improved output drive capability and considerably higher small-signal and power bandwidths.

Features

• Small-signal bandwidth: 10MHz

• Output drive capability: 600W, 10VRMS at VS=±18V

• DC voltage gain: 100000

• AC voltage gain: 6000 at 10kHz

• Power bandwidth: 200kHz


Datasheet PDF Download :
NE5534N pdf

Others datasheet of same file : NE5533, NE5533A, NE5533AN, NE5533N, NE5534
