Part Number : MP2307

Function : 3A, 23V, 340KHz, Synchronous Rectified Step-Down Converter

Package : 8-pin SOIC Type

Maker : Monolithic Power Systems

Pinouts :
MP2307 datasheet

Description :

The MP2307 is a monolithic synchronous buck regulator. The device integrates 100mΩ MOSFETS that provide 3A of continuous load current over a wide operating input voltage of 4.75V to 23V.

Current mode control provides fast transient response and cycle-by-cycle current limit. An adjustable soft-start prevents inrush current at turn-on and in shutdown mode, the supply current drops below  1µA.

This device, available in an 8-pin SOIC package, provides a very compact system solution with minimal reliance on external components.

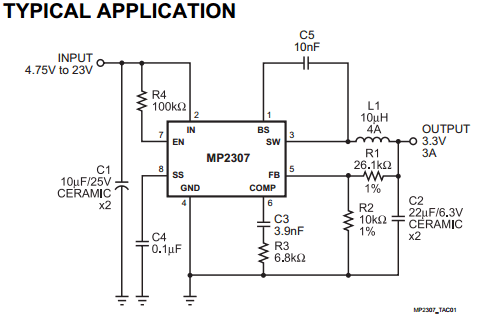

Application Circuts :

 Features :

1. Programmable Soft-Start

2. Stable with Low ESR Ceramic Output Capacitors

3. Fixed 340KHz Frequency

4. Cycle-by-Cycle Over Current Protection



5. Input Under Voltage Lockout


Datasheet PDF Download :
MP2307 pdf

Others datasheet of same file : MP-2307, MP2307DN
