Part Number : LTC2960
Function : 36V, Nano-Current Two-Input Voltage Monitor
Package : DFN 8, TSOT-23 type
Maker : Linear Technology

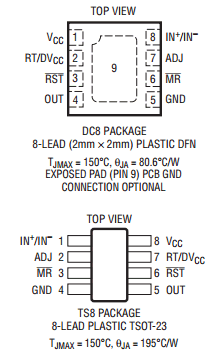

Pinouts :
Description :
The LTC2960 is a nano-current, high voltage two-input voltage monitor, ideally suited for multicell battery applications. External resistive dividers configure custom comparator thresholds.
Features :
1. 850nA Quiescent Current
2. Operating Range: 2.5V < VCC< 36V
3. 1.5% (Max) Accuracy Over Temperature
4. Adjustable Reset Threshold
5. Wide Temperature Range (–40°C to 125°C)
6. Manual Reset Input
6. Compact 2mm ×2mm 8-lead DF*and TSOT-23 (ThinSOT) Packages
Applications :
1. Portable Equipment
2. Battery Powered Equipment
3. Security Systems
4. Automotive Systems
Datasheet PDF Download :
Others datasheet of same file : C2960, LTC-2960, LTC2960-1, LTC2960-2, LTC2960-3
