Part Number : C2036

Function : 80V, 1A, NPN Transistor

Package : TO-126 Type

Maker : Toshiba

Pinouts :
C2036 datasheet

Description :

Silicon NPN Epitaxial Type Transistor (PCT Process)

Features :

1. 27Mhz RF Power Amplifier Applications

2. Recomended for 1W Mobile Radio Output Stage and Driver Stage of 4W Transmitter.

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 80 V

2. Collector to Emitter Voltage : Vceo = 80 V

3. Emitter to Base Voltage : Vebo = 5 V

4. Collector Current : Ic = 1 A

5. Total Dissipation : Pc = 1 W

6. Junction Temperature : Tj = 150°C



7. Storage Temperatue : Tsg = -55 ~ +150°C







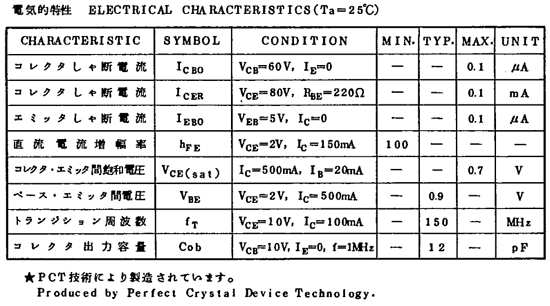

Datasheet PDF Download :
C2036 pdf

Others datasheet of same file : 2SC2036
