Part Number : BC327
Function : -45V, Amplifier Transistor / PNP Silicon Transistor
Package : TO 92 Type
Maker : ON Semiconductor
Pinouts :
Description : Silicon PNP Transistor

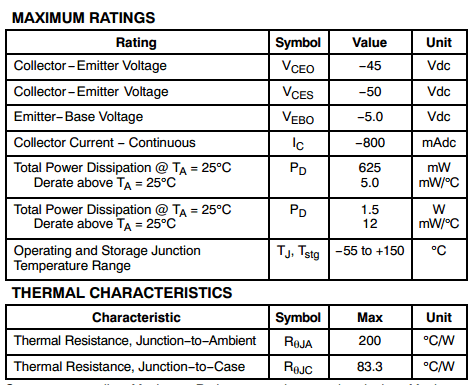

Absolute maximum ratings ( Ta=25°C )
1. Collector to Base Voltage : Vcbo = - 45 V
2. Collector to Emitter Voltage : Vceo = - 50 V
3. Emitter to Base Voltage : Vebo = - 5.0 V
4. Collector Current : Ic = - 800 mA
5. Total Dissipation : Pc = 625 mW
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C
Datasheet PDF Download :
Others datasheet of same file :
BC-327, BC327-16, BC327-25 ,BC327-40, BC327G
