Part Number : 40TTS12PBF

Function : 1200V, PHASE CONTROL SCR

Package : TO-220 Type

Maker : International Rectifier

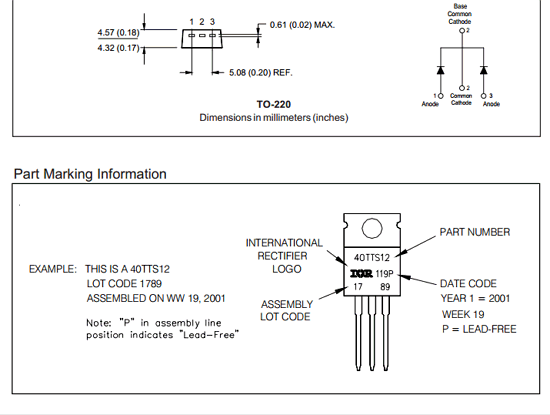

Pinouts :
40TTS12PBF datasheet

Description :

The 40TTS12PbF SAFEIRseries of silicon controlled rectifiers are specifically designed for medium power switching and phase control applications. The glass passivation technology used has reliable operation up to 140°C junction temperature.

Typical applications are in input rectification (soft start) and these products are designed to be used with International Rectifier input diodes, switches and output rectifiers which are available in identical package outlines.


Block Diagram




Datasheet PDF Download :
40TTS12PBF pdf

Others datasheet of same file : 40TTS12, 40TTS12-PBF
