Part Number : Z51F0410
Function : Z8051 Series 8-Bit Microcontrollers / 10 SSOP
Maker : IXYS CORPORATION

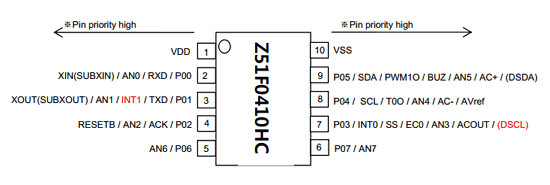

Pinouts :
Z51F0410 datasheet

Description :

The Z51F0410 MCU is advanced CMOS 8-bit microcontroller with 4K bytes of Flash.

This is powerful microcontroller which provides a highly flexible and cost effective solution to many embedded control applications. This provides the following features : 4K bytes of Flash, 256 bytes of RAM, 256 bytes of Data EEPROM, general purpose I/O, 8/16-bit timer/counter, watchdog timer, watch timer, USART, BUZZER, I2C, on-chip POR, 12-bit A/D converter, analog comparator, 10-bit PWM output, on-chip oscillator and clock circuitry. The Z51F0410 MCU also supports power saving modes to reduce power consumption.




Datasheet PDF Download :
Z51F0410 pdf

Others datasheet of same file : Z51F0410,Z51F0410HCX
