Part Number : XR21V1412

Function : 2-CH FULL-SPEED USB UART

Package : 32-pin QFN package

Maker : Exar Corporation

Image :
XR21V1412 datasheet

Description :

The XR21V1412 (V1412) is an enhanced 2-channel Universal Asynchronous Receiver and Transmitter (UART) with a USB interface. The USB interface is fully compliant to Full Speed USB 2.0 specification that supports 12 Mbps USB data transfer rate.

The USB interface also supports USB suspend, resume and remote wakeup operations. The V1412 operates from an internal 48MHz clock therefore no external crystal/oscillator is required as in previous generation UARTs.

With the fractional baud rate generator, any baud rate can accurately be generated using the internal 48MHz clock.

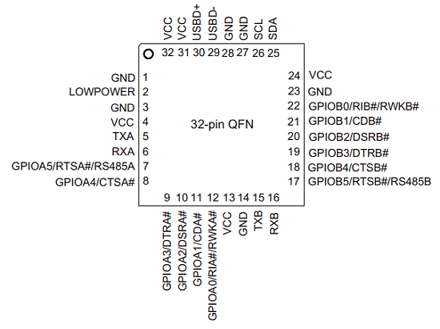

Pinouts :

 Applications :

• Portable Appliances

• External Converters (dongles)

• Battery-Operated Devices

• Cellular Data Devices

• Factory Automation and Process Controls



• Industrial applications

Datasheet PDF Download :
XR21V1412 pdf
