Part Number : XL1410

Function : 2A, 380KHz, 18V, Buck DC to DC Converter

Package : SOIC 8 Pin type

Maker : XLSEMI ( www.xlsemi.com )

Image :
XL1410 datasheet

Description :

The XL1410 is a 380KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of  driving a 2A load wi th high efficiency, l ow ri pple and excellent line and load regulation.

Requi ring a minimum number of  external  components, the regulator is simple to use and include internal f requency compensat i on and a fixed-f requency oscillator.

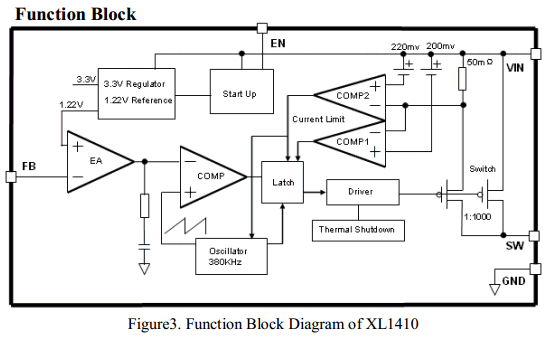

Block Diagram

Features

1. Wide 3.6V to 18V Input Voltage Range

2. Output Adjustable from 1.222V to 16V

3. Maximum Duty Cycle 100%

4. Minimum Drop Out 0.6V

5. Fixed 380KHz Switching Frequency

6. 2A Constant Output Current Capability

7. Internal Optimize Power MOSFET

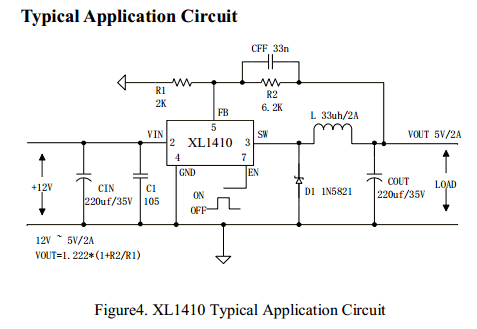

Application Circuits




Datasheet PDF Download :
XL1410 pdf

Others datasheet of same file : XL-1410, XL1410E1
