Part Number : W04M

Function : 400V, 1.5A, Single phase bridge rectifier.

Package : WOM Type

Maker : GeneSIC Semiconductor

Image :

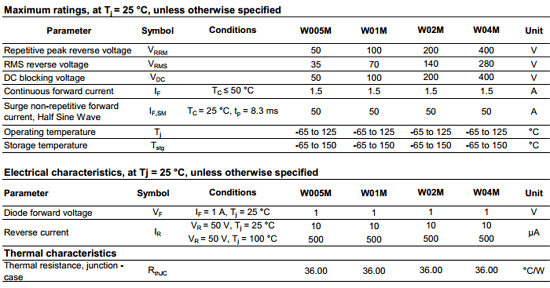

W04M datasheet

Description :

• Types up to 400 V VRRM
• Ideal for printed circuit board
• Low forward voltage drop
• Low leakage current
• High temperature soldering guaranteed: 250⁰C/ 10 seconds, 0.375" lead length

Mechanical Data



1. Case: Molded plastic body

2. Terminals: Plated leads, solderable per MIL-STD-202 Method 208 guaranteed

3. Polarity: Color band on body denotes cathode end

4. Mounting position: Any

5. Weight: 1.07 grams


Others datasheet of same file : W005M, W01M, W02M

Datasheet PDF Download :
W04M pdf
