Part Number : UA741CN

Function : General Purpose Operational Amplifier

Package : DIP 8 Pin

Maker : STMicroelectronics,  Texas Instruments

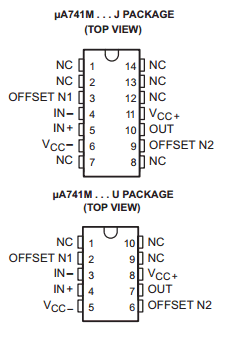

Pinouts :
UA741CN datasheet
Description :

The UA741CN device is a general-purpose operational amplifier featuring offset-voltage null capability. The high common-mode input voltage range and the absence of latch-up make the amplifier ideal for voltage-follower applications.

Features

• Short-Circuit Protection
• Offset-Voltage Null Capability
• Large Common-Mode and Differential Voltage Ranges
• No Frequency Compensation Required
• No Latch-Up
• Designed to Be Interchangeable With Fairchild µA741



Datasheet PDF Download :
UA741CN pdf

Others datasheet of same file :

UA741, UA741CD, UA741CDE4, UA741CDG4, UA741CDR
