Part Number : TPS23861
Function : TPS23861 IEEE 802.3at Quad Port Power-over-Ethernet PSE Controller
Maker : Texas Instruments

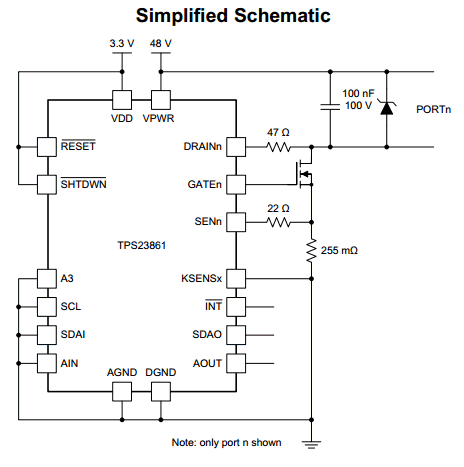

Pinouts :
TPS23861 datasheet

Description :

The TPS23861 is an easy-to-use, flexible, IEEE802.3at PSE solution. As shipped, it automatically manages four 802.3at ports without the need for any external control.

The TPS23861 automatically detects Powered Devices (PDs) that have a valid signature, determines power requirements according to classification and applies power. Two-event classification is supported for type-2 PDs.

The TPS23861 supports DC disconnection and the external FET architecture allows designers to balance size, efficiency and solution cost requirements.




Datasheet PDF Download :
TPS23861 pdf

Others datasheet of same file : TPS23861,TPS23861PW,TPS23861PWR
