Part Number : TOP100YAI
Function : TOPSwitch Family / Three-terminal off-line PWM switch
Maker : Power Integrations, Inc

Pinouts :

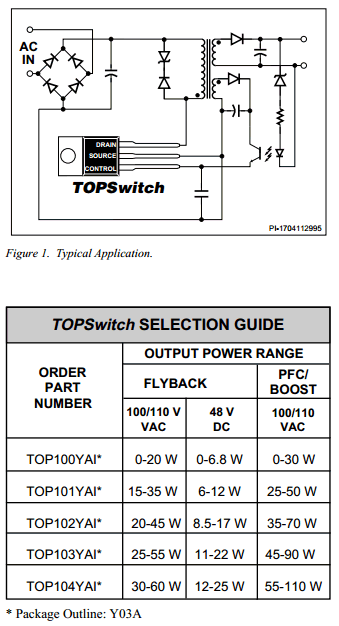

TOP100YAI datasheet

Description :

The TOPSwitchfamily implements, with only three pins, all functions necessary for an off-line switched mode control system: high voltage N-channel power MOSFET with controlled turn-on gate driver, voltage mode PWM controller with integrated 100 kHz oscillator, high voltage start-up bias circuit, bandgap derived reference, bias shunt regulator/error amplifier for loop compensation and fault protection circuitry.


Datasheet PDF Download :
TOP100YAI pdf

Others datasheet of same file : TOP100-4,TOP100YAI,TOP101YAI,TOP102YAI,TOP103YAI
