Part Number : TDA2030A
Function : 18W Hi-Fi AMPLIFIER AND 35W DRIVER
Maker : STMicroelectronics

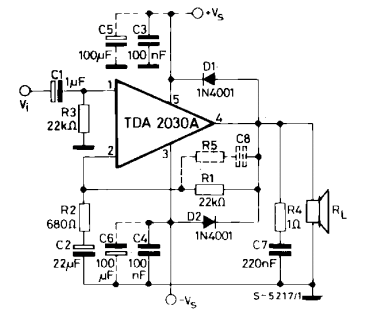

Pinouts :
TDA2030A datasheet

Description :

Features
■ Output power 18 W at VS= ±16 V / 4 Ω with 0.5% distortion
■ High output current
■ Very low harmonic and crossover distortion
■ Short-circuit protection
■ Thermal shutdown


Description
The TDA2030A is a monolithic IC in a Pentawatt package intended for use as a low-frequency
class-AB amplifier.

With VS max= 44 V it is particularly suited for more reliable applications without regulated supply and for 35 W driver circuits using low-cost complementary pairs.






Datasheet PDF Download :
TDA2030A pdf

Others datasheet of same file : TDA2030,TDA2030A,TDA2030AV
