Part Number : TDA2003

Function : 10W CAR RADIO AUDIO AMPLIFIER

Pacakge : Pentawatt 5 pin Type

Maker : STMicroelectronics

Pinouts :
TDA2003 datasheet

Description :

The TDA2003 has improved performance with the same pin configuration as the TDA 2002.
The additional features of TDA 2002, very low number of external components, ease of assembly, space and cost saving, are maintained.

The device provides a high output current capability (up to 3.5A) very low harmonic and cross-over distortion.

Completely safe operation is guaranteed due to protection against DC and AC short circuit between all pins and ground, thermal over-range, load dump voltage surge up to 40V and fortuitous open ground.

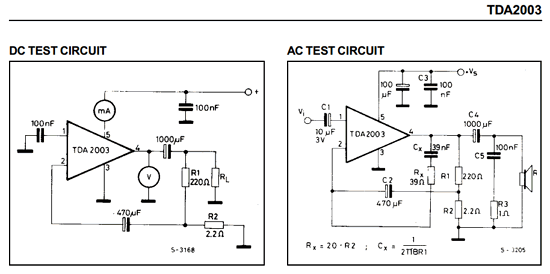

 Block Diagram


Datasheet PDF Download :
TDA2003 pdf

Others datasheet of same file : TDA2003H, TDA2003V
