Part Number : STA510F

Function : 44V, 5.5A, Quad power half-bridge, Audio Amplifier

Package : Power SO 36 Pin Type

Maker : STMicroelectronics

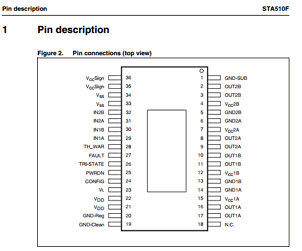

Pinouts :
STA510F datasheet

Features

1. Minimum input/output pulse width distortion
2. 150 mΩRdsON complementary DMOS output stage
3. CMOS compatible logic inputs
4. Thermal protection
5. Thermal warning output
6. Undervoltage protection
7. No power-on, power-off sequence required


Description

The STA510F is a monolithic, quad, half-bridge stage in multipower BCD technology.
The device can be used as dual-bridge or reconfigured, by connecting the CONFIG pin to the Vdd pin, as single-bridge with doublecurrent capability, and
as half-bridge (binary mode) with half current capability.

Datasheet PDF Download :
STA510F pdf

Others datasheet of same file : STA510, STA510FTR
