Part Number : SLA7026

Function : HIGH-CURRENT PWM/ UNIPOLAR STEPPER MOTOR CONTROLLER/DRIVERS

Package : ZIP 18 Pin Type

Maker : Allegro MicroSystems

Pinouts :
SLA7026 datasheet

Description :

The SLA7024M, SLA7026, SLA7026M, and SMA7029M are designed for high-efficiency and high-performance operation of 2-phase, unipolar stepper motors. An automated, innovative packaging technology combined with power FETs and monolithic logic/control circuitry advances power multi-chip modules (PMCMs™) toward the complete ntegration of motion control.

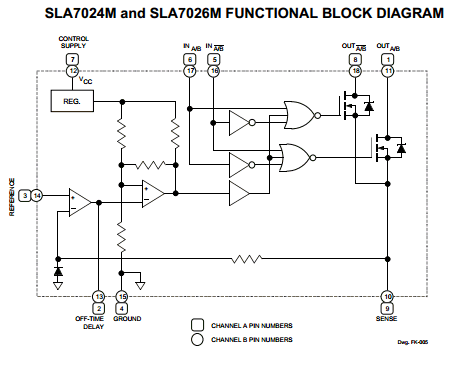

Block Diagram

Features
1. Half- or Full-Step Unipolar Drive
2. High-Efficiency, High-Speed PWM
3. Dual PWM Current Control (2-Phase)
4. Programmable PWM Current Control
5. Low Component Count PWM Drive
6. Low Internal Power Dissipation
Datasheet PDF Download :
SLA7026 pdf

Others datasheet of same file : SLA7024, SLA7024M, SLA-7026, SLA7026M, SMA7029
