Part Number : R1LV0408CSP-5SI

Function : Wide Temperature Range Version 4M SRAM (512-kword 8-bit)

Package : SOP, TSOP 32 Pin

Maker : Renesas Electronics

Pinouts :
R1LV0408CSP-5SI datasheet

Description :

The R1LV0408CSP-5SI, R1LV0408C-I is a 4-Mbit static RAM organized 512-kword ×8-bit. R1LV0408C-I Series has realized higher density, higher performance and low power consumption by employing CMOS process technology (6-transistor memory cell). The R1LV0408C-I Series offers low power standby power dissipation; therefore, it is suitable for battery backup systems. It has packaged in 32-pin SOP, 32-pin TSOP II and 32-pin STSOP.

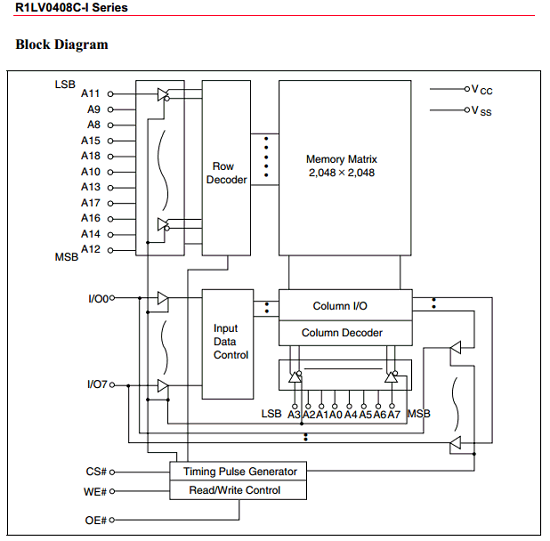

Block Diagram

Features

• Single 3 V supply: 2.7 V to 3.6 V

• Access time: 55/70 ns (max)

• Power dissipation:

 (1) Active: 6 mW/MHz (typ)

 (2) Standby: 1.5 µW (typ)

• Completely static memory.

(1) No clock or timing strobe required

• Equal access and cycle times



Datasheet PDF Download :
R1LV0408CSP-5SI pdf

Others datasheet of same file :

R1LV0408CSA, R1LV0408CSA-5SI, R1LV0408CSA-7LI,

R1LV0408CSB, R1LV0408CSB-5SI
