Part Number : PUSB3TB6
Function : ESD protection for ultra high-speed interfaces / Plastic extremely thin small outline package
Maker : NXP Semiconductors.

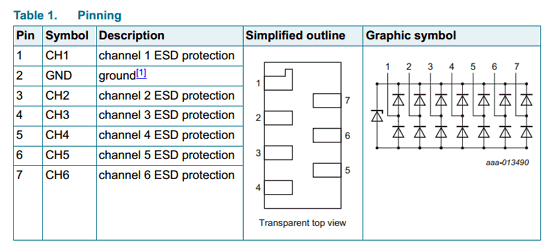

Pinouts :
PUSB3TB6 datasheet

Description :

Partnumber : PUSB3TB6, Marking Number : 3T



The device is designed to protect high-speed interfaces such as SuperSpeed and Hi - Speed USB combination, Secure Digital (SD) card 3.0 and Thunderbolt interfaces against ElectroStatic Discharge (ESD).

The device includes six high-level ESD protection diode structures for ultra high-speed signal lines and is encapsulated in a DFN2111-7 (SOT1358-1) leadless ultra small Surface-Mounted Device (SMD) plastic package.




Datasheet PDF Download :
PUSB3TB6 pdf

Others datasheet of same file : PUSB3TB6
