Part Number : PCM5101A-A1, PCM5101A-Q1

Function : 2-V rms DirectPath , 112, 106, 100-dB Audio Stereo DAC

Package : TSSOP 20 Pin type

Maker : Texas Instruments

Image :
PCM5101A-A1 datasheet

Description :

The PCM510xA-Q1 devices are a family of monolithic complementary metal oxide semiconductor (CMOS) integrated circuits that include a stereo digital-to analog converter and additional support circuitry in a small TSSOP package. The PCM510xA-Q1 uses the latest generation of TI’s advanced segment-digital analog converter (DAC) architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.

 Pinouts :

Features

1. Ultra Low Out-of-Band Noise

2. Integrated High-Performance Audio PLL with BCK

3. Reference to Generate SCK Internally

4. Direct Line Level 2.1-VRMS Output

5. No DC Blocking Capacitors Required

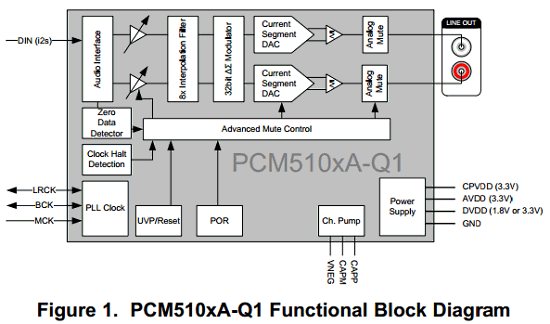

 Block Diagram




Datasheet PDF Download :
PCM5101A-A1 pdf

Others datasheet of same file :

P5100AQ1, P5101AQ1, P5102AQ1, PCM5100AQPWRQ1, PCM5101AA1
