Part Number : PCM1865
Function : PCM186x 110dB 2ch and 4ch Audio ADCs with Universal Front End
Maker : Texas Instruments

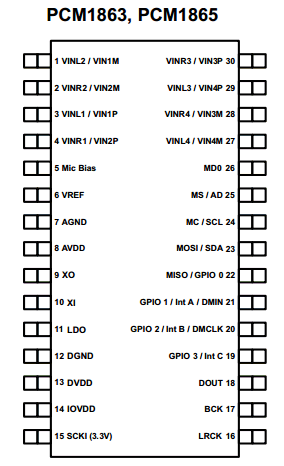

Pinouts :
PCM1865 datasheet

Description :

The PCM186x family of audio front-end devices takes a new approach to audio-function integration to ease compliance with European Ecodesign legislation while enabling high-performance end products. With no need for a 5-volt supply or an external programmable-gain amplifier, smaller, smarter products are feasible at reduced cost. The PCM186x's highly flexible audio front end supports input levels from small-mV microphone inputs to 2.1V RMS line Inputs without external resistor dividers. The PCM186x family integrates many system-level functions that assist or replace some DSP functions.


Datasheet PDF Download :
PCM1865 pdf

Others datasheet of same file : PCM1861,PCM1861DBT,PCM1861DBTR,PCM1863,PCM1863DBT
