Part Number : PC922

Function : High Power OPIC Photocoupler

Maker : Sharp Electronics

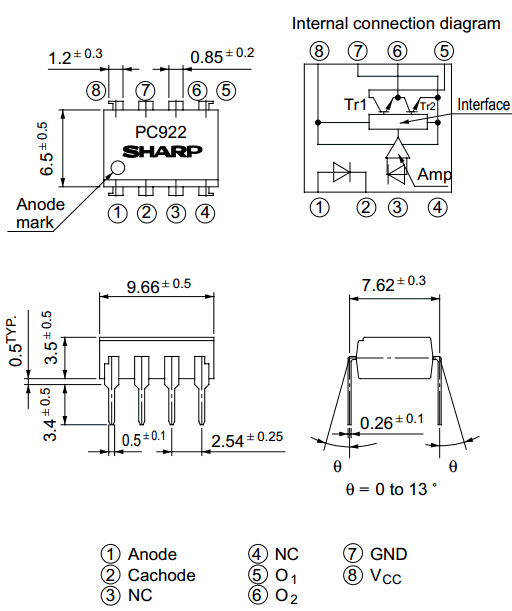

Pinouts :
PC922 datasheet

Description :

1. Built-in base amplifier for inverter drive

2. High power (I o1: MAX. 0.5A (DC) ) (I o2p: MAX. 2.0A (pulse) )

3. High isolation voltage between input and output ( Viso: 5 000Vrms)

4. High noise reduction type

5. High speed response (tPHL, t PLH : MAX. 5µs)

6. High sensitivity (IFLH : MAX. 3mA )

7. Recognized by UL, file No. E64380





Datasheet PDF Download :
PC922 pdf

Others datasheet of same file : PC922
