Part Number : PA2032A

Function : Tuner Amplifier, ( MOSFET )

Package : 25 Pin type

Maker : Pioneer Electronics

Image :
PA2032A datasheet

Description :

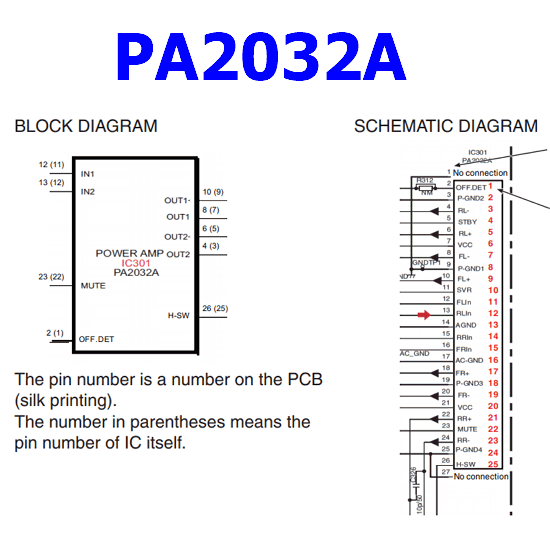

The Power IC, PA2032A used on tha Tuner Amp Unit is a 25 pin IC. The same PCB of the Tuner Amp Unit is used for other models that use a 27 pin IC, too. So, the PCB has lands for a 27 pin IC. When you replace the Power IC, install the Power IC onto 25 pins (2- 26 pin) located in the center of 27 pins for IC301. Therefore, when you check the Power IC on the block diagram, the schematic diagram and the PCB connection diagram, you have to pay attention as follows

Pinout :

사용자 삽입 이미지


























Datasheet PDF Download :
PA2032A pdf

Others datasheet of same file : PA-2032A
