Part Number : NE5534

Function : Internally Compensated Dual Low Noise Operational Amplifier

Package : SOIC, DIP 8 Pin

Maker : ON Semiconductor

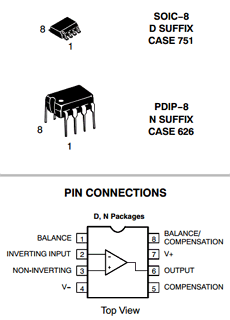

Pinouts :
NE5534 datasheet

Description :

The NE5534 / SA5534 / SE5534 / SE5534A are single high-performance low noise operational amplifiers. Compared to other operational amplifiers, such as TL083, they show better noise performance, improved output drive capability, and considerably higher small-signal and power bandwidths.

Block Diagram

Features :

1. DC Voltage Gain: 100000

2. AC Voltage Gain: 6000 at 10 kHz

3. Power Bandwidth: 200 kHz



Applications

1. Audio Equipment

2. Instrumentation and Control Circuits

3. Telephone Channel Amplifiers

4. Medical Equipment
