Part Number : MTV038N

Function : On-screen-display controller for CRT/LCD monitor

Package : DIP 16 Pin Type

Maker : Myson Century Inc

Pinouts :
MTV038N datasheet

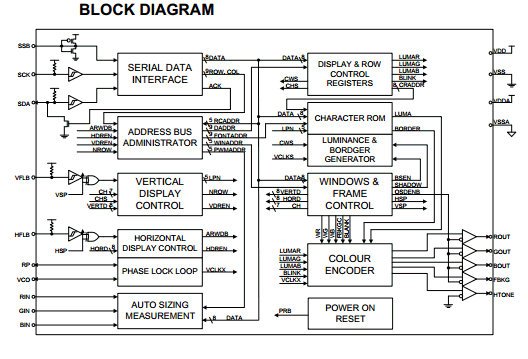

Description :

MTV038N is designed for CRT/LCD monitor applications to display built-in characters or fonts onto monitor screens. The display operation occurs by transferring data and control information from the micro-controller to RAM through a serial data interface.

It can execute full-screen display automatically, as well as specific functions such as character background, bordering, shadowing, blinking, double height and width, font by font color control, character but ton boxes, frame positioning, frame size control by character height and row-to-row spacing, horizontal display resolution, full-screen erasing, fade-in/fade-out effect, windowing effect, shadowing on window and full-screen self test pattern generator.

Features :

1. Horizontal SYNC input up to 150 KHz.

2. On-chip PLL circuitry or external pixel clock input up to 150 MHz.

3. Full screen self-test pattern generator.



 Others datasheet of same file : MTV038, MTV038N20


Datasheet PDF Download :
MTV038N pdf
