Part Number : MPSU56

Function : 80V, 2A, PNP Silicon Amplifier Transistor

Maker : Motorola , Freescale

Image :

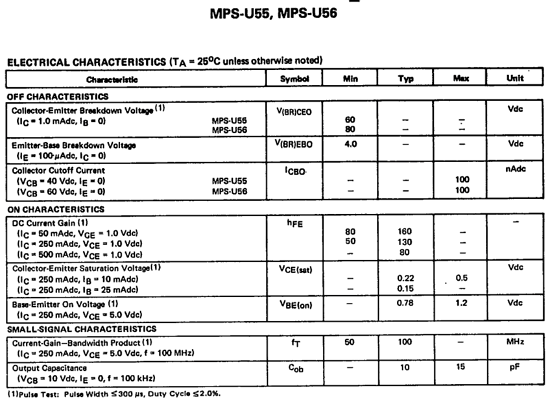

MPSU56 datasheet

Description :

MPSU56 designed for general-purpose, high-voltage amplifier and drvier applications.

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 80 V

2. Collector to Emitter Voltage : Vceo = 80 V

3. Emitter to Base Voltage : Vebo = 4 V

4. Collector Current : Ic = 2 A

5. Total Dissipation : Pc = 1 W

6. Junction Temperature : Tj = 150°C



7. Storage Temperatue : Tsg = -55 ~ +150°C

Pinouts :


Datasheet PDF Download :
MPSU56 pdf

Others datasheet of same file : MPSU55
