Part Number : MAX8772
Function : Dual-Phase, QuickPWM Controller for IMVP-6+ CPU Core Power Supplies
Maker : Maxim Integrated

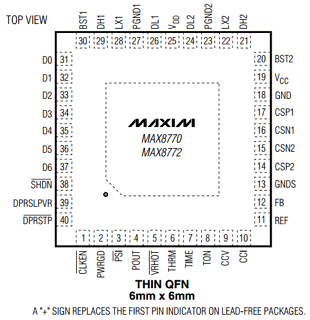

Pinouts :
MAX8772 datasheet

Description :

The MAX8770/MAX8771/MAX8772 are 2/1-phase interleaved Quick-PWM™ step-down VID power supply controllers for notebook CPUs. True out-of-phase operation reduces input ripple current requirements and output voltage ripple while easing component selection and layout difficulties.

The Quick-PWM control provides instanta neous response to fast load current steps. Active voltage positioning reduces power dissipation and bulk output capacitance requirements and allows ideal positioning compensation for tantalum, polymer, or ceramic bulk out put capacitors.


Datasheet PDF Download :
MAX8772 pdf

Others datasheet of same file : MAX8770,MAX8770GTL+,MAX8771,MAX8771GTL+,MAX8772
