Part Number : LTC3245

Function : Wide Vin range, Low Noise, 250mA Buck-Boost Charge Pump

Package : DFN 12 Pin Type

Maker : Linear Technology

Pinouts :
LTC3245 datasheet

Description :

The LTC3245 is a switched capacitor buck-boost DC/DC converter that produces a regulated output (3.3V, 5V or adjustable) from a 2.7V to 38V input.

The device uses switched capacitor fractional conversion to maintain regulation over a wide range of input voltage. Internal circuitry automatically selects the conversion ratio to optimize efficiency as input voltage and load conditions vary.

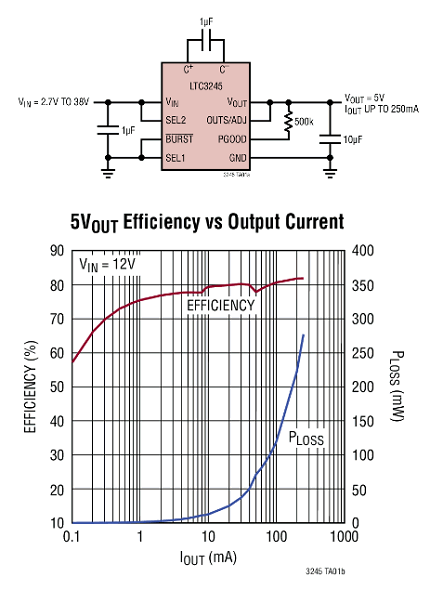

Application Circut


Features :

1. 2.7V to 38V VIN Range

2. IQ = 18μA Operating; 4μA in Shutdown

3. 12V to 5V Efficiency = 81%

4. Multimode Operation (2:1, 1:1, 1:2) with Automatic Mode Switching

5. Low Noise, Constant Frequency Operation

6. Pin Selectable Burst Mode® Operation


Datasheet PDF Download :
LTC3245 pdf

Others datasheet of same file :

LTC-3245, LTC3245EDE, LTC3245EMSE, LTC3245HMSE, LTC3245IDE
