Part Number : LTC2645

Function : Quad 12-/10-/8-Bit PWM to V out DACs with 10ppm/`C Reference

Package : MSOP 16 Pin Type

Maker : Linear Technology

Pinouts :
LTC2645 datasheet

Description :

The LTC2645 is a family of quad12-, 10-, and8-bit PWM to-voltage output DACs with an integrated high accuracy, low drift, 10ppm/°C reference ina16-lead MSOP package. It has rail-to-rail output buffers and is guaranteed monotonic.

1.  No Latency PWM-to-Voltage Conversion

2.  Voltage Output Updates and Settles within 8µs

3.  100kHz to 30Hz PWMInput Frequency

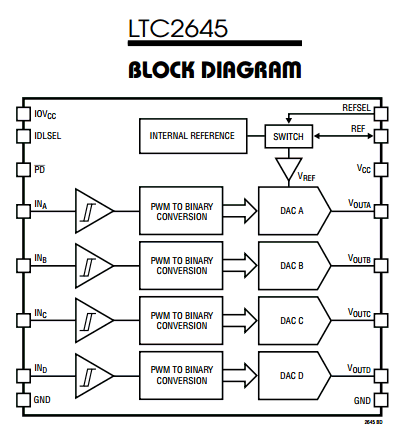

Block Diagram

Application

1. No Latency PWM-to-Voltage Conversion

2. Voltage Output Updates and Settles within 8μs

3. 100kHz to 30Hz PWM Input Frequency

4. ±2.5LSB Max INL; ±1LSB Max DNL (LTC2645-12)

5. Guaranteed Monotonic

6. Pin-Selectable Internal or External Reference

7. 2.7V to 5.5V Supply Range

8. 1.71V to 5.5V Input Voltage Range

Datasheet PDF Download :
LTC2645 pdf

Others datasheet of same file : LTC2645, LTC2645-L10, LTC2645-L12, LTC2645-L8
