Part Number : LT8471

Function : Dual Multitopology DC/DC Converters with 2A Switchesand Synchronization

Package : TSSOP 20, 28 QFN Pin Type

Maker : Linear Technology

Pinouts :
LT8471 datasheet

Description :

The LT8471 is a dual PWM DC/DC converter containing two internal 2A, 50V switches and an additional500mA switch to facilitate step-down and inverting conversion.

Each 2A channel can be independently configured as a buck, boost, SEPIC, flyback or inverting converter. Capable of generating positive and negative outputs from a single input rail, the LT8471 is ideal for many local power supply designs.

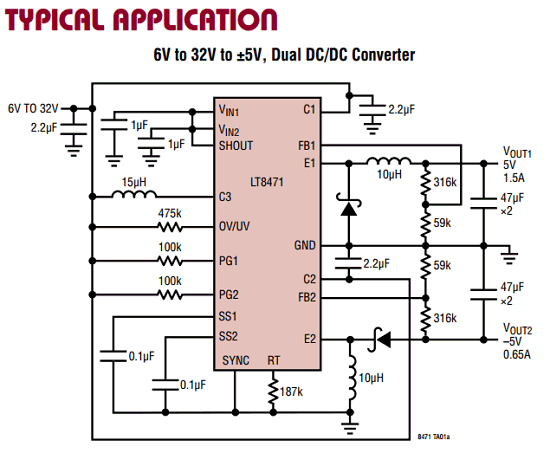

 Application Circuits

Features

1. 500mA Skyhook Channel Efficiently Generates Boosted Input Voltage

2. Wide Input Voltage Range of 2.6V to 50V

3. UVLO and OVLO Programmable on OV/UV Pin

Datasheet PDF Download :
LT8471 pdf

Others datasheet of same file :

LT-8471 ,LT8471EFE, LT8471FE, LT8471IFE
