Part Number : LMH2110
Function : LMH2110 8 GHz Logarithmic RMS Power Detector with 45 dB dynamic range / tiny 6-bump DSBGA package.
Maker : Texas Instruments

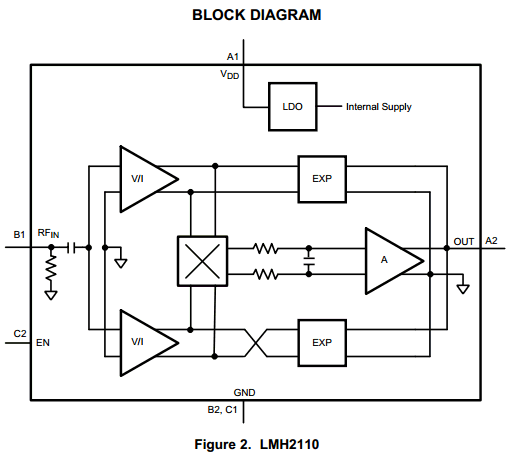

Pinouts :
LMH2110 datasheet

Description :

The LMH2110 is a 45 dB Logarithmic RMS power detector particularly suited for accurate power measurement of modulated RF signals that exhibit large peak-to-average ratios, i.e. large variations of the signal envelope. Such signals are encountered in W-CDMA and LTE cell phones.

The RMS measurement topology inherently ensures a modulation insensitive measurement. The device has an RF frequency range from 50 MHz to 8 GHz. It provides an accurate, temperature and supply insensitive, output voltage that relates linearly to the RF input power in dBm. The LMH2110's excellent conformance to a logarithmic response enables an easy integration by using slope and intercept only, reducing calibration effort significantly.

The device operates with a single supply from 2.7V to 5V. The LMH2110 has an RF power detection range from -40 dBm to 5 dBm and is ideally suited for use in combination with a directional coupler. Alternatively a resistive divider can be used as well.




Datasheet PDF Download :
LMH2110 pdf

Others datasheet of same file : LMH2110,LMH2110TM,LMH2110TM/NOPB,LMH2110TMX,LMH2110TMX/NOPB
