Part Number : JHS-113PIN

Function : JH-113, JHS-113 / Quadrature Hybrid, 7 - 14 MHz

Maker : MACOM

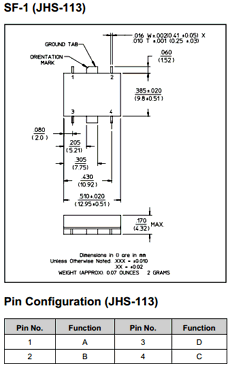

Pinouts :
JHS-113PIN datasheet

Description :

3 dB Hybrids are ideal for dividing a signal into two signals of equal amplitude and a constant 90' o
or 180'  phase differential and for Quadrature combining or performing summation/differential combining.

•  Octave Bandwidth
•  Low VSWR: 1.2:1
•  Low Loss: 0.5 dB Max.
•  Impedance: 50 Ohms Nominal
•  Input Power: 4 Watts Max.@ 25°C
•  MIL-STD-202 Screening Available




Datasheet PDF Download :
JHS-113PIN pdf

Others datasheet of same file : JH-113PIN, JHS-113PIN
