Part Number : IR2118S
Function : Single channel driver / 8-Lead Pin
Maker : International Rectifier

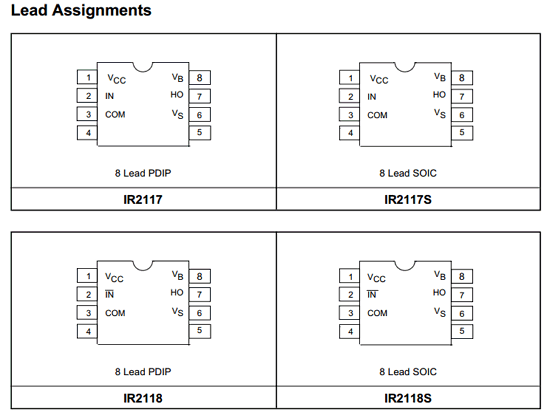

Pinouts :
IR2118S datasheet

Description :

The IR2117/IR2118(S) is a high voltage, high speed power MOSFET and IGBT driver. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS outputs.

The output driver features a high pulse current buffer stage designed for minimum cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high or low side configuration which operates up to 600 volts.




Datasheet PDF Download :
IR2118S pdf

Others datasheet of same file : IR2117,IR2117S,IR2118,IR2118S
