Part Number : HLMP-2800

Function : LED Light Bars / The HLMP-2XXX series light bars are rectangular light sources

Maker : Avago Technologies

Image :
HLMP-2800 datasheet

Description :

The HLCP-X100, HLMP-2800 and HLMP-2XXX series light bars are rectangular light sources designed for a variety of applications where a large bright source of light is required. These light bars are configured in single in-line and dual-in-line packages that contain either single or segmented light emitting areas. The Al GaAs Red HLCP-X100 series LEDs use double hetero junction AlGaAs on a GaAs substrate.

The HER HLMP-2300/2600 and Yellow HLMP-2400/2700 series LEDs have their p-n junctions diffused into a GaAsP epitaxial layer on a GaP substrate. The Green HLMP-2500/2800 series LEDs use a liquid phase GaP epitaxial layer on a GaP substrate. The bicolor HLMP-2900 series use a combination of HER/Yellow or HER/Green LEDs.

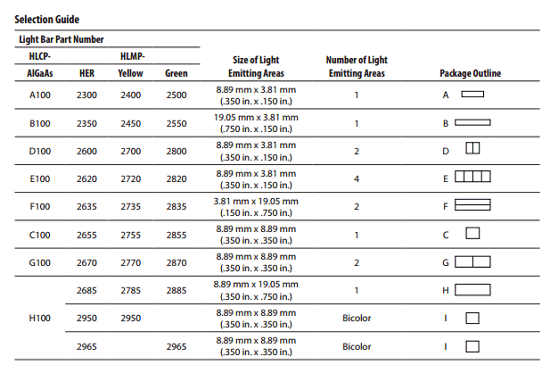

Ordering Information

Features

• Large bright, uniform light emitting areas

• Choice of colors

• Categorized for light output

• Yellow and Green categorized for dominant wavelength

• Excellent ON-OFF contrast


Datasheet PDF Download :
HLMP-2800 pdf

Others datasheet of same file :

HLCP-2300, HLCP-2400, HLCP-2500, HLCP-2600, HLCP-2700
