Part Number : HER107

Function : 1.0A, 800V, Diode, Rectifier

Package : DO-41 type

Maker : Won-Top Electronics

Pinouts :

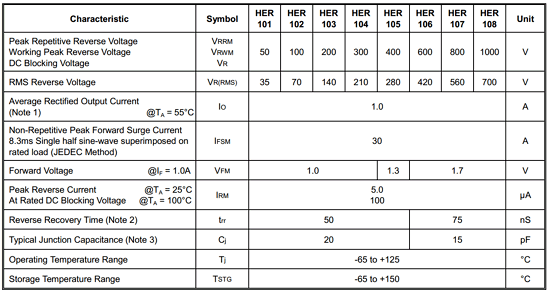

HER107 datasheet

Description :

HIGH EFFICIENCY RECTIFIER

Features :

1. Diffused Junction

2. Low Forward Voltage Drop

3. High Current Capability

4. High Reliability

5. High Surge Current Capability



Mechanical Data

1. Case : Molded Plastic

2. Terminals : Plated Leads Solderable per MIL-STD-202, Method 208

3. Polarity : Cathode Band

4. Weight : 0.34 grams (approx.)

5. Mounting Position : Any

6. Marking : Type Number


Datasheet PDF Download :
HER107 pdf

Others datasheet of same file :

HER101, HER102, HER103, HER104, HER105
