Part Number : HEF4519BP
Function : Quadruple 2-input multiplexer
Maker : Philips Electronics

Pinouts :
HEF4519BP datasheet

Description :

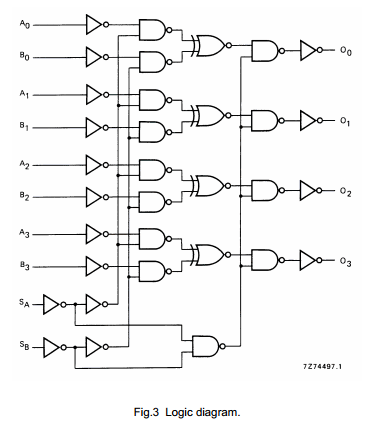

The HEF4519B provides four multiplexing circuits with common select inputs (SA, SB); each circuit contains two inputs (An, Bn) and one output (On). It may be used to select four bits of information from one of two sources.

The HEF4519B cannot be used to multiplex analogue signals. The outputs utilize standard buffers for best performance.

HEF4519BP(N): 16-lead DIL; plastic (SOT38-1)
HEF4519BD(F): 16-lead DIL; ceramic (cerdip) (SOT74)
HEF4519BT(D): 16-lead SO; plastic (SOT109-1)




Datasheet PDF Download :
HEF4519BP pdf

Others datasheet of same file : HEF4519,HEF4519BD,HEF4519BDB,HEF4519BP,HEF4519BPB
