Part Number : HDM16416H-S00S
Function : LCD Character Display Modules & Accessories Gray Reflective
Maker : Unspecified

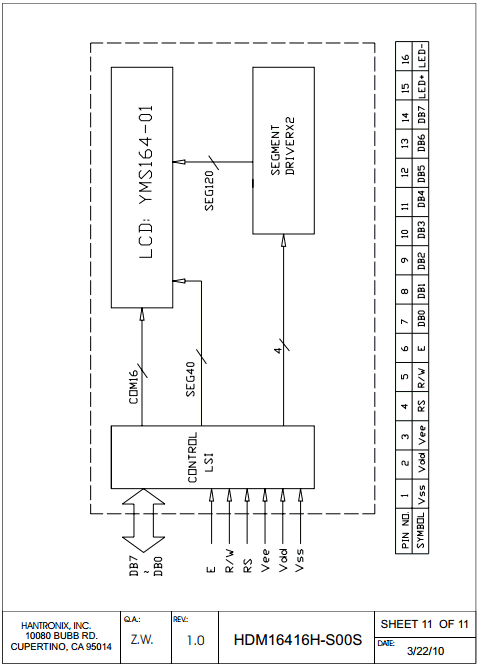

Pinouts :
HDM16416H-S00S datasheet

Description :

16 CHARACTERS, 4 LINES LCD DISPLAY MODULE

A. Drive Method: 1/16 Duty, 1/5 Bias
B. The Module Operating Voltage: 5.0V;
C. The LCD Operating Voltage : 4.7V;
D. Viewing Direction: 6:00
E. Operating Temperature: 0 ~50'C
F. Storage Temperature: -20 ~70'C
G. Display type: STN mode, Positive type display







Datasheet PDF Download :
HDM16416H-S00S pdf
