Part Number : HD74HC564P

Function : Octal D-type Flip-Flops (with 3-state outputs)

Maker : Hitachi -> Renesas Electronics

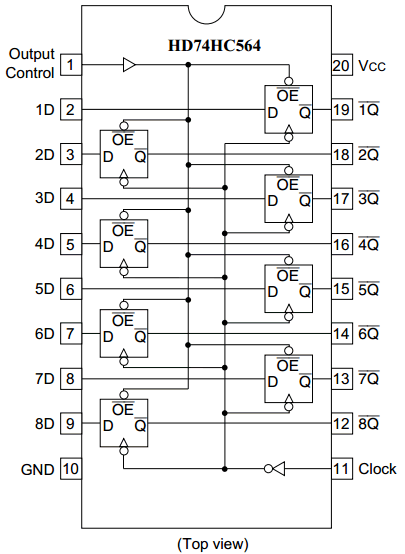

Pinouts :
HD74HC564P datasheet

Description :

These devices are positive edge triggered flip-flops.

The difference between HD74HC564 and HD74HC574 is only that the former has inverting outputs and the latter has noninvertering outputs.


Datasheet PDF Download :
HD74HC564P pdf

Others datasheet of same file : HD74HC564,HD74HC564P,HD74HC574,HD74HC574P
