Part Number : HCPL-0211-060E

Function : Very High CMR / Wide VCC Logic Gate Optocoupler

Package : DIP 8 Pin Type

Maker : Avago Technologies

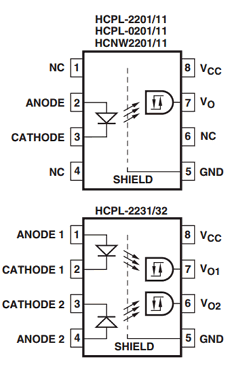

Pinouts :
HCPL-0211-060E datasheet

Description :

The HCPL-22XX, HCPL-02XX, and HCNW22XX are optically-coupled logic gates. The HCPL-22XX, and HCPL-02XX contain a GaAsP LED while the HCNW22XX contains an AlGaAs LED. The detectors have totem pole output stages and optical receiver input stages with built-in Schmitt triggers to provide logic-compatible waveforms, eliminating the need for additional waveshaping.

Application Circuit :

Features

• 10 kV/µs minimum Common Mode Rejection (CMR) at VCM = 1000 V (HCPL-2211/2212/0211/2232, HCNW2211)

• Wide operating VCC range: 4.5 to 20 Volts

• 300 ns propagation delay guaranteed over the full temperature range

• 5 Mbd typical signal rate

• Low input current (1.6mA to 1.8 mA )



Datasheet PDF Download :
HCPL-0211-060E pdf

Others datasheet of same file :

HCNW2201, HCNW2211, HCPL-0201, HCPL-0211, HCPL0211060E
