Part Number : GA1L3M

Marking : L81

Function : 50V, 0.1A, NPN TRANSISTOR

Maker : NEC , Renesas Technology

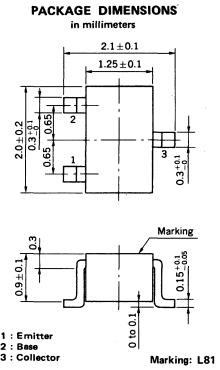

Pinouts :
GA1L3M datasheet

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 60 V

2. Collector to Emitter Voltage : Vceo = 50 V

3. Emitter to Base Voltage : Vebo = 10 V

4. Collector Current : Ic = 100 mA

5. Total Dissipation : Pc = 150 mW

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C


Datasheet PDF Download :
GA1L3M pdf

Others datasheet of same file : GA1L3, GA1L3M-T1
