Part Number : D1876

Function : 800V, 3A, NPN Transistor

Package : TO-3PML Type

Maker : SANYO , Panasonic

Pinouts :
D1876 datasheet

Description :

NPN Triple Diffused Planar Silicon Transistor

Features :

1. High speed (tf =100ns).

2. High breakdown voltage (VCBO=1500V).

3. High reliability (adoption of HVP process).

4. On-chip damper diode.

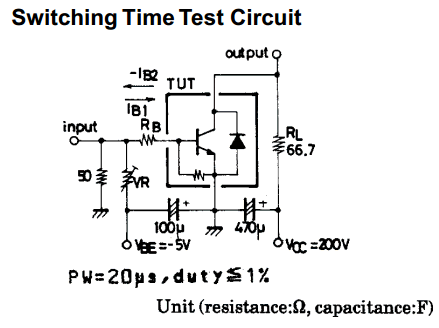

 Test Circuit



Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 1500 V

2. Collector to Emitter Voltage : Vceo = 800 V

3. Emitter to Base Voltage : Vebo = 6 V

4. Collector Current : Ic = 3 A

5. Total Dissipation : Pc = 50 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C

Applications :

1. Color TV horizontal deflection output

2. Color display horizontal deflection output


Datasheet PDF Download :
D1876 pdf

Others datasheet of same file : 2SD1876
