Part Number : CXA2134Q

Function : US Audio Multiplexing Decoder

Package : 48 pin QFP (Plastic)

Maker : SONY SEMICONDUCTOR

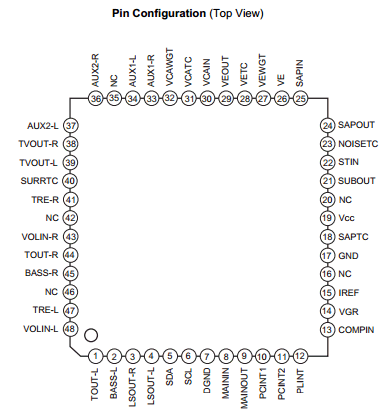

Pinouts :
CXA2134Q datasheet

Description :

The CXA2134Q is an IC designed as a decoder for the Zenith TV Multi-channel System and also corresponds with I2C bus. Functions include stereo demodulation, SAP (Separate Audio Program) demodulation, dbx noise reduction and sound processor. Various kinds of filters are built in this IC.

Adjustment, mode control and sound processor control are all executed through I2C bus.



Pinouts :

Features

Audio multiplexing decoder dbx noise reduction decoder sound processor

1. Two external inputs

2. Quasi-surround

3. Bass control

4. Treble control

5. Volume control

Applications

TV, VCR and other decoding systems for US audio multiplexing TV broadcasting
