Part Number : CD4066B
Function : CMOS quad bilateral switch
Maker : Texas Instruments

Pinouts :
CD4066B datasheet

Description :

The CD4066B is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals.

It is pin-for-pin compatible with the CD4016B, but exhibits a much lower on-state resistance. In addition, the on-state resistance is relatively constant over the full signal-input range.




Datasheet PDF Download :
CD4066B pdf

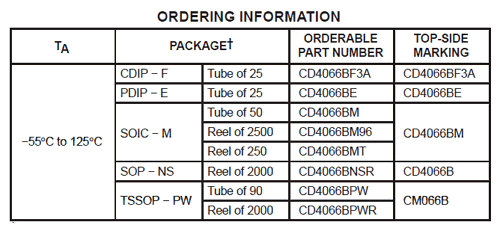

Others datasheet of same file : CD4066B,CD4066BE,CD4066BF,CD4066BF3A,CD4066BM
