Part Number : C640

Function : 30V, 100mA, NPN Silicon Epitaxial Planar Transistor

Package : TO-92 Type

Maker : Semtech Corporation

Pinouts :
C640 datasheet

Description :

NPN Silicon Epitaxial Planar Transistor for switching and AF amplifier applications.

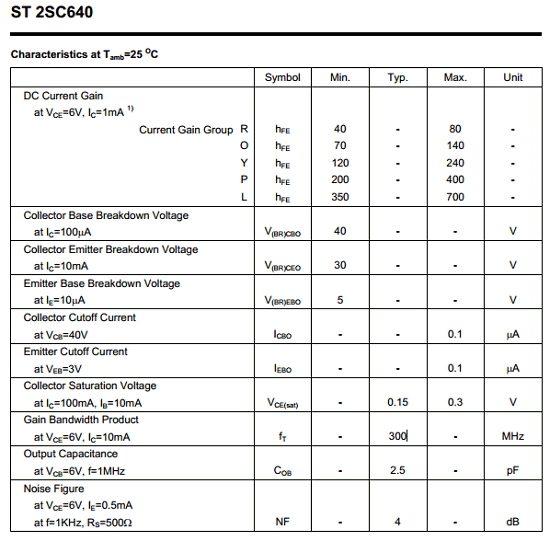

The transistor is subdivided into five groups R, O, Y, P and L, according to its DC current  gain.
As complementary type the PNP transistor ST 2SA733 is recommended.

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 40 V

2. Collector to Emitter Voltage : Vceo = 30 V

3. Emitter to Base Voltage : Vebo = 5 V

4. Collector Current : Ic = 100 mA

5. Total Dissipation : Pc = 150 mW

6. Junction Temperature : Tj = 150°C



7. Storage Temperatue : Tsg = -55 ~ +150°C

Others datasheet of same file : 2SC640, ST2SC640

Datasheet PDF Download :
C640 pdf
