Part Number : C3679

Function : 900V, 5A, Power Transistor

Package : TO-3PN type

Maker : Sanken Electric co.,ltd.

Image :
C3679 datasheet

Description :

Silicon NPN Triple Diffused Planar Transistor (High Voltage Switching Transistor)

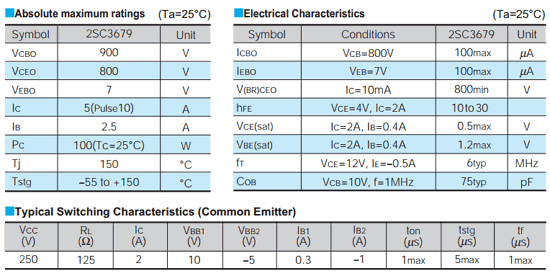

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 900 V

2. Collector to Emitter Voltage : Vceo = 800 V

3. Emitter to Base Voltage : Vebo = 7 V

4. Collector Current : Ic = 5 A

5. Total Dissipation : Pc = 100 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C


Applications :

Switching Regulator and General Purpose

Datasheet PDF Download :
C3679 pdf

Others datasheet of same file : 2SC3679
