Part Number : C3459

Function : 800V, 4.5A, NPN Transistor

Package : TO-3PB Type

Maker : SANYO , Panasonic

Pinouts :
C3459 datasheet

Description :

NPN Triple Diffused Planar Silicon Transistor

Features :

1. High breakdown voltage and high reliability.

2. Fast switching speed (t f: 0.1µs typ).

3. Wide ASO.

4. Adoption of MBIT process.

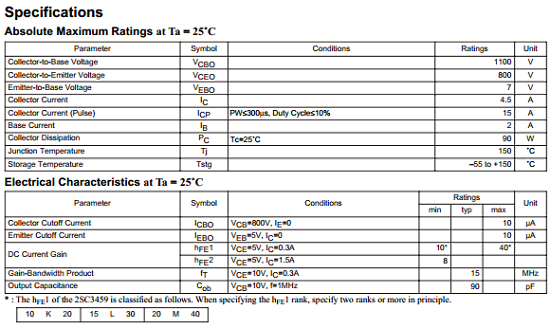

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 1100 V

2. Collector to Emitter Voltage : Vceo = 800 V

3. Emitter to Base Voltage : Vebo = 7 V

4. Collector Current : Ic = 4.5 A

5. Total Dissipation : Pc = 90 W

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C



Applications

Switching Regulator

Datasheet PDF Download :
C3459 pdf

Others datasheet of same file : 2SC3459
