Part Number : C2026

Function : 14V, 50mA, NPN SILICON TRANSISTOR

Package : TO-92 Type

Maker : NEC , Renesas Technology

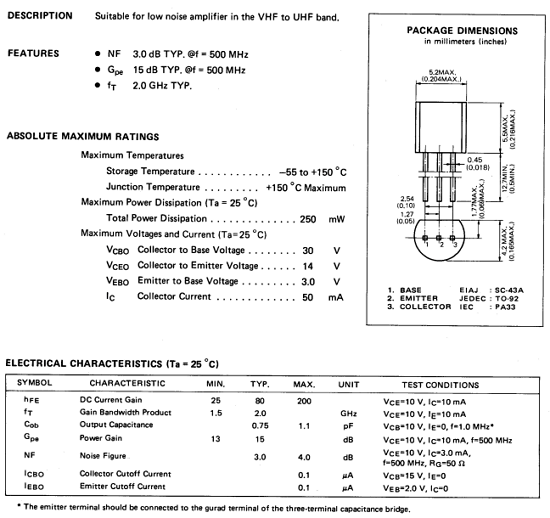

Image :
C2026 datasheet

Description :

Suitable for low noise amplifier in the VHF to UHF band.

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 30 V

2. Collector to Emitter Voltage : Vceo = 14 V

3. Emitter to Base Voltage : Vebo = 3 V

4. Collector Current : Ic = 50 mA

5. Total Dissipation : Pc = 250 mA

6. Junction Temperature : Tj = 150°C

7. Storage Temperatue : Tsg = -55 ~ +150°C

Pinouts :




Datasheet PDF Download :
C2026 pdf

Others datasheet of same file : 2SC2026
